Corn starch is an important raw material for modern industry. It is widely used in starch sweeteners, food processing, pharmaceuticals, fermentation, chemicals, and other applications.

As the corn starch industry develops, production lines face increasing demands for product quality, processing efficiency, and resource utilization. Equipment performance at each stage of production plays an important role in achieving these objectives.

A modern corn starch production line typically includes raw material preparation, steeping, milling and germ separation, fiber processing, starch separation and purification, dewatering, and drying. Water recycling can also be integrated into the process to improve resource utilization.

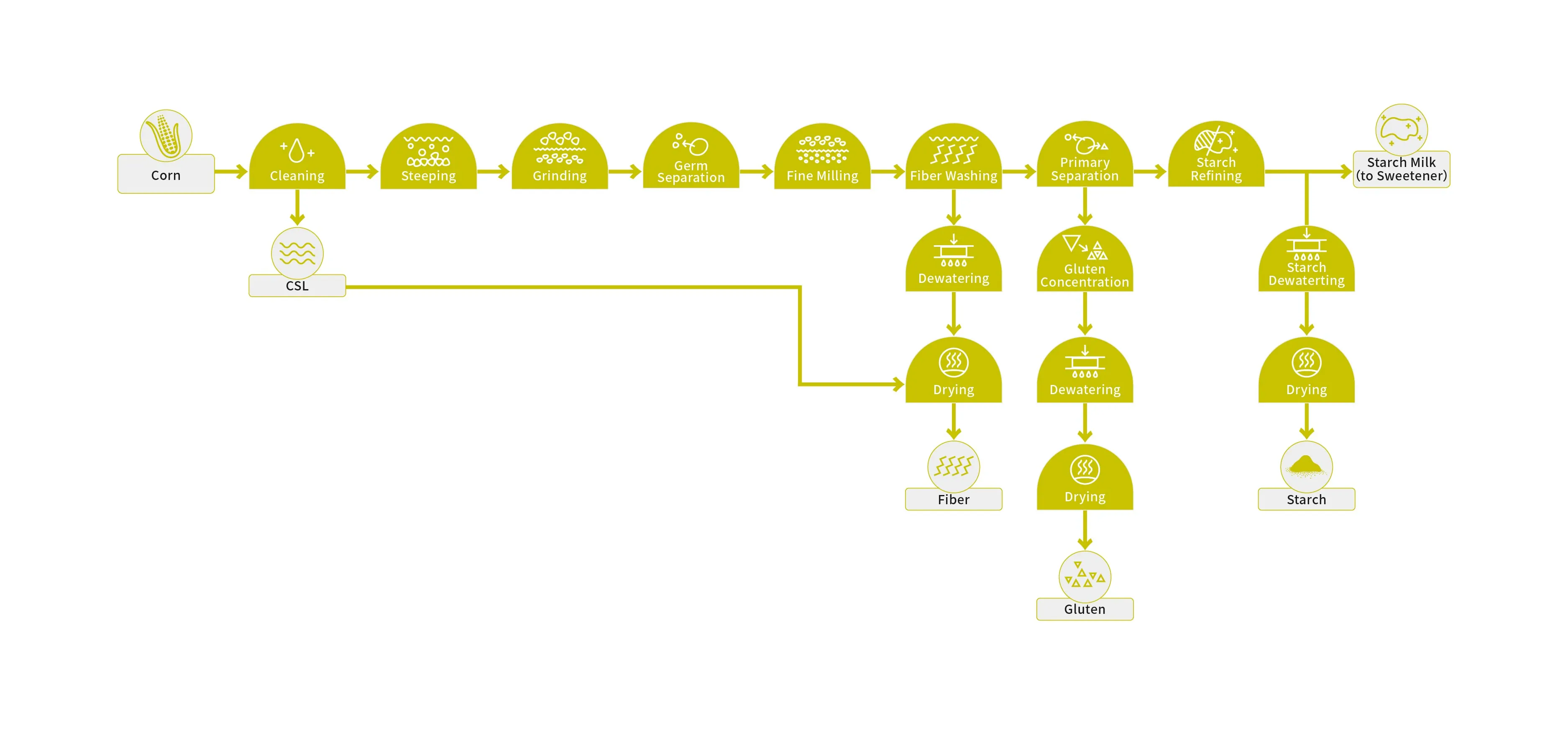

What Are the Main Stages of Corn Starch Processing?

Corn starch production begins with the preparation and steeping of corn. The steeped kernels then undergo milling and germ separation to release the different components.

The separated materials are further processed through fine grinding and fiber washing. Starch is then separated and purified from protein and other components before the different wet materials undergo dewatering and drying.

The main stages include:

🔸Raw material cleaning and preparation

🔸Steeping

🔸Corn milling and germ separation

🔸Fiber grinding and washing

🔸Starch separation and purification

🔸Dewatering

🔸Drying

🔸Process water recycling

Corn Milling and Germ Separation

After steeping, the corn kernels are processed to separate the germ from the other components. This is an important step in the front end of wet corn starch production.

The degerminating mill is a toothed milling machine used to break steeped corn kernels. The milling and separation process needs to release the germ while minimizing damage to it.

A two-stage milling and two-stage separation process can be used for this purpose. Adjusting the gap between the rotating and stationary discs helps reduce germ damage and maximize germ recovery.

Fine Grinding of Fiber

Following germ separation, the fiber is finely ground to release the starch attached to the fiber.

A pin mill is used for this fine grinding stage. The MZM series pin mill uses a 5V grouped belt automatic tensioning system, providing high transmission efficiency and stable, reliable operation.

After fine grinding, the processed fiber contains a low level of attached starch before entering the fiber washing section.

Starch Separation and Purification

The efficient separation of starch, protein, fiber, and other components is a core part of corn starch production. Stable separation performance is important for maintaining the purity of the starch milk.

What Equipment Is Used for Starch and Protein Separation?

Centrifuges are key equipment for separating starch and protein. During operation, the internal fluid dynamics of the centrifuge bowl affect separation performance, processing capacity, and operating stability.

The Type 38 disc centrifuge can be used in several stages of corn starch processing, including:

🔸Starch milk pre-concentration

🔸Starch milk separation

🔸Gluten concentration

🔸Intermediate concentration and clarification

The equipment is designed to support efficient separation while maintaining the required processing stability.

Dewatering of Fiber, Germ and Protein

After washing, fiber, germ, protein, and other wet materials need to be dewatered before drying.

Efficient dewatering reduces the moisture content of the material entering the drying stage, which helps reduce the load on subsequent drying equipment.

A screw press with a grid-type screen frame increases the effective dewatering area. It provides high processing capacity and low moisture content in the discharged material, reducing the load on the drying stage and improving economic performance.

Drying Solutions for Corn Starch Processing

Drying is one of the higher-energy-consuming stages in corn starch production. The drying equipment needs to match the characteristics and processing requirements of different materials.

What Drying Equipment Is Used for Fiber?

The tube bundle dryer is a high-capacity drying machine widely used for materials such as fiber.

Its structure and manufacturing process can be optimized to support stable and reliable long-term operation. The main drive system uses direct transmission through a hydraulic coupling, which helps buffer impact and facilitates maintenance.

This supports continuous and stable operation under high-temperature and high-humidity conditions.

How Can Water Be Reused in a Corn Starch Production Line?

Resource efficiency depends on the design of the entire production line, not only on individual equipment.

Water recycling is an important part of corn starch production. In the production process, fresh water is used only in the final-stage starch milk washing section. Other process water is reused, creating a closed-loop water circulation system.

This integrated system reduces fresh water consumption and minimizes wastewater discharge. It also recovers dissolved materials from the water, helping increase the overall recovery of dry matter.

What Should You Consider When Designing a Large-Scale Corn Starch Production Line?

For large-scale corn starch production, equipment needs to work together across multiple processing stages.

Key considerations include:

🔸Efficient corn milling and germ separation

🔸Effective fiber grinding and washing

🔸Stable starch separation and purification

🔸Efficient dewatering before drying

🔸Suitable drying equipment for different materials

🔸Process water recycling

🔸Overall production stability and resource utilization

Looking at the complete process helps ensure that equipment selection is aligned with the requirements of the production line rather than treating each machine as an isolated unit.

From Corn Starch Processing Equipment to an Integrated Production Solution

As the corn starch processing industry moves from capacity expansion toward higher value and improved resource efficiency, the integration of equipment and process technologies becomes increasingly important.

As a global manufacturer of starch processing machinery, Myande Group provides solutions covering the complete corn starch production process. Its equipment covers key stages from raw material cleaning, acid preparation, and steeping to corn milling and germ separation, fine grinding, fiber washing, starch separation and purification, and the dewatering and drying of starch, protein, germ, and fiber.

The company's equipment portfolio includes degerminating mills, MZM series pin mills, Type 38 disc centrifuges, hydraulic presses, and bundle tube dryers for different stages of corn starch production.

By bringing together equipment and system solutions across the production process, Myande supports customers in developing efficient, stable, and modern corn starch production lines.
